홈 > 제품&솔루션 > FORTINET > 소규모 사업자
SMB/ROBO/SOHO 제품군
  • 중소 규모의 회사를 위한 고사양의 다중 위협 보안 솔루션
  • 보다 높은 사양과 가격 그리고 동급 최다 인터페이스 제공
    • SOHO (SMALL OFFICE and HOME OFFICE)
    제품명 Firewall Throughput IPSec Throughput Concurrent Sessions IPS Throughput Antivirus Throughput 10/100 10/100/1000 1000 base 10G 확장슬롯
    110C 500M 100M 400,000 200M 65M 2 8 - - -
    100D 2.5G 450M 2.5 Million 950M 300/700M 0 22 - - -
    80C 1.9G 140M 1 Million 350M 50/190M 7 2 - - -
    60C 1G 70M 400,000 135M 20/40M 3 5 - - -
    50B 50M 48M 25K 30M 19M 5 - - - -
    40C 200M 60M 40,000 135M 20/40M - 7 - - -

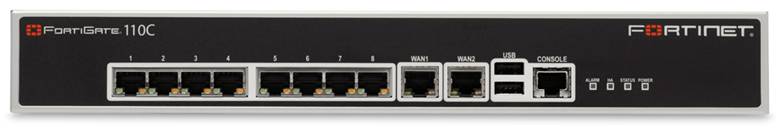

        FortiGate-110C
  • 2x 10/100/1000 WAN Interface Ports
  • 8x 10/100 Configurable Ports
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 9 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 1000/500/120 MbpsIPS Throughput 450 Mbps
    Concurrent Latency73 μs Antivirus Throughput (Proxy Based / Flow Based) 65/160 Mbps
    Concurrent Sessions1 MilVirtual Domains (Default / Max) 10/10
    New Sessions/Sec(TCP)10,000Firewall Policies ( System/VDOM)10,000/5,000
    IPSec VPN Throughput140 Mbps Client-to-Gateway IPSec VPN Tunnels 1,500
    SSL-VPN Throughput 80 MbpsConcurrent SSL-VPN Users (Recommended Max) 100
        FortiGate-100D
  • 2x 10/100/1000 WAN Interface Ports
  • 1x 10/100/1000 DMZ Interface Port
  • 1x 10/100/1000 Mgmt Interface Port
  • 2x 10/100/1000 HA Interface Port
  • 16x 10/100/1000 Configurable Ports
  • 16 GB Internal Storage
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 16 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 2500 / 1000 / 200 Mbps IPS Throughput 950 Mbps
    Concurrent Latency 37 μs Antivirus Throughput (Proxy Based / Flow Based) 300/700 Mbps
    Concurrent Sessions 2.5 Mil Virtual Domains (Default / Max) 10/10
    New Sessions/Sec 22,000 Max Number of FortiAPs 32
    Firewall Policies ( System/VDOM) 10,000 / 5,000 Max Number of FortiTokens 1,000
    IPSec VPN Throughput 450 Mbps Client-to-Gateway IPSec VPN Tunnels 5,000
    SSL-VPN Throughput 300 Mbps Concurrent SSL-VPN Users (Recommended Max) 200
        FortiGate-80C
  • 2x 10/100/1000 WAN Interface Ports
  • 1x 10/100 DMZ Interface Port
  • 6x 10/100 Configurable Ports
  • 8 GB Internal Storage
  • ExpressCard slot
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 9 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 1900/700/120 Mbps IPS Throughput 350 Mbps
    Concurrent Latency 45 μs Antivirus Throughput (Proxy Based / Flow Based) 50/190 Mbps
    Concurrent Sessions 1 Mil Virtual Domains (Default / Max) 10/10
    New Sessions/Sec 12K Max Number of FortiAPs 16
    Firewall Policies ( System/VDOM) 5,000 / 500 Max Number of FortiTokens 500
    IPSec VPN Throughput 140 Mbps Client-to-Gateway IPSec VPN Tunnels 1,000
    SSL-VPN Throughput 70 Mbps Concurrent SSL-VPN Users (Recommended Max) 60

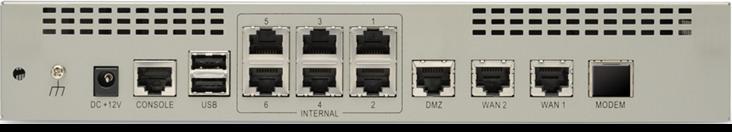

        FortiGate-60C
  • 2x 10/100M WAN Interface Ports
  • 1x 10/100 DMZ Interface Port
  • 5x 10/100 Configurable Ports
  • ExpressCard Slot
  • Built-in 8G flash storage
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 8 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 1/1/1 Gbps IPS Throughput 135 Mbps
    Concurrent Latency 4 μs Antivirus Throughput (Proxy Based / Flow Based) 20/40 Mbps
    Concurrent Sessions 400,000 Virtual Domains (Default / Max) 10/10
    New Sessions/Sec 3,000 Max Number of FortiAPs 5
    Firewall Policies ( System/VDOM) 5,000 / 500 Max Number of FortiTokens 500
    IPSec VPN Throughput 70 Mbps Client-to-Gateway IPSec VPN Tunnels 500
    SSL-VPN Throughput 15 Mbps Concurrent SSL-VPN Users (Recommended Max) 60

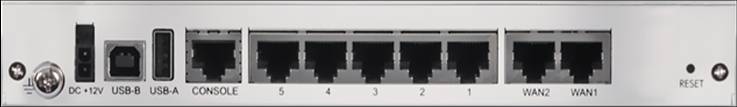

        FortiGate-40C
  • 2x 10/100 WAN Interface Ports
  • 5x 10/100 Switch Ports
  • 4Gb Internal Storage
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 7 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 200/200/200 Mbps IPS Throughput 135 Mbps
    Concurrent Latency 3 μs Antivirus Throughput (Proxy Based / Flow Based) 20/40 Mbps
    Concurrent Sessions 400,000 Virtual Domains (Default / Max) 10/10
    New Sessions/Sec 2,000 Max Number of FortiAPs 5
    Firewall Policies ( System/VDOM) 5,000 / 500 Max Number of FortiTokens 500
    IPSec VPN Throughput 60 Mbps Client-to-Gateway IPSec VPN Tunnels 250
    SSL-VPN Throughput 15 Mbps Concurrent SSL-VPN Users (Recommended Max) 40






    // //
