Enterprise 제품군
  • 대기업의 지사 및 중간 규모의 회사를 위한 고사양의 다중 위협 보안 솔루션
  • 보다 높은 사양과 가격 그리고 동급 최다 인터페이스 제공
    • ENTERPRISE APPLIANCE
    제품명 Firewall Throughput IPSec Throughput Concurrent Sessions IPS Throughput Antivirus Throughput 10/100 10/100/1000 1000 base 10G 확장슬롯
    FG-3950B 20-120G 8-50.5G 20 Million 5-20G 4/5-15G - 2 4*SFP 2*SFP+ 5*FMC
    FG-3240C 40G 17G 10 Million 8G 2.6/5G - 2 16*SFP 12*SFP+ -
    FG-3140B 58 Gbps 22 Gbps 4 Million 10G 2.3G - 2 10*SFP 10*SFP+ 4*FSM
    FG-3040B 40 Gbps 17G 10 Million 6G 2.3/4.5G - 2 10*SFP 8*SFP+ 4*FSM
    FG-1240B 40G 16G 2 Million 1.5G 1.2/1.6G - 16 24*SFP - 6*FSM
    FG-1000C 20G 8G 7 Million 6G 1.7/2.1G - 14 8*Shared(SFP or 10/100/1000) 2*SFP+ -
    FG-800C 20G 8G 7 Million 6G 1.7/2.1G - 12 8*Shared(SFP or 10/100/1000) 2*SFP+ -

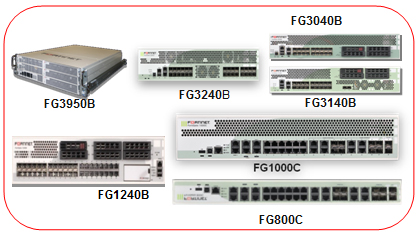

    포티넷 하이엔드 구성요소
    시스템(10G 인터페이스 장착)
    어플라이언스 : FG3950B
                       FG3240C
                       FG3140B
                       FG3040B
                       FG1000C
                       FG1240B
                       FG800C
    10G 전용 모듈
    1) ADM-XE2 : 2*10G IPS Accel, SPM included
    2) ADM-XD4 : 4*10G Firewalll Accel, NP4 ASIC included
                     (20G firewall, 6G Ipsec performance)
    3) FMC-XD2 : 2*10G Firewalll Accel, NP4 ASIC included
    4) FMC-XG2 : 2*10G IPS Accel, SP2 included

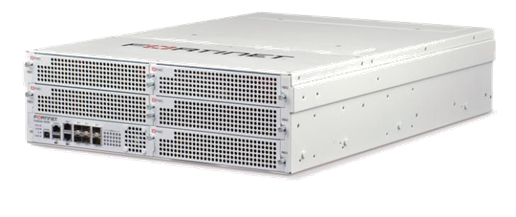

        FortiGate-3950B
  • 2x NP4 Accelerated 10-GbE SFP+ Interfaces (2x Transceiver included)
  • 4x NP Accelerated 1-GbE SFP Slot
  • 2x Non-Accelerated 10/100/1000 Interfaces
  • 5x Fortinet Mezzanine Card (FMC) Expansion Slot
  • 2x 128GB Internal Storage
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 20/20/20 - 120/120/120 GbpsIPS Throughput 5-20 Gbps
    Concurrent Latency4 μs Antivirus Throughput (Proxy Based / Flow Based) 4/5-15 Gbps
    Concurrent Sessions20 MilVirtual Domains (Default / Max) 10/500
    New Sessions/Sec250,000Max Number of FortiAPs1,024
    Firewall Policies(System/VDOM)100,000/50,000Max Number of FortiTokens5,000
    IPSec VPN Throughput8-50.5 Gbps Client-to-Gateway IPSec VPN Tunnels 64,000
    SSL-VPN Throughput 1.2 GConcurrent SSL-VPN Users (Recommended Max) 2,500

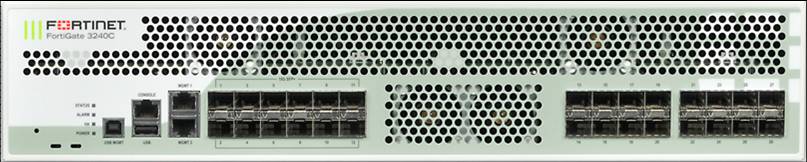

        FortiGate-3240C
  • 18x Gigabit Accelerated SFP Interface Slots
  • 12x 10G accelerated SPF+ Slots (2x transceivers default)
  • 2x 10/100/1000 Interface Ports
  • 64G Internal SSD
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 28 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 40/40/40 Gbps IPS Throughput 8 Gbps
    Concurrent Latency 4 μs Antivirus Throughput (Proxy Based / Flow Based) 2.5/5 Gbps
    Concurrent Sessions 10 Mil Virtual Domains (Default / Max) 10/250
    New Sessions/Sec 200,000 Max Number of FortiAps 1,024
    Firewall Policies ( System/VDOM) 100,000/50,000 Max Number of FortiTokens 5,000
    IPSec VPN Throughput 17 Gbps Client-to-Gateway IPSec VPN Tunnels 64,000
    SSL-VPN Throughput 1 Gbps Concurrent SSL-VPN Users (Recommended Max) 30,000

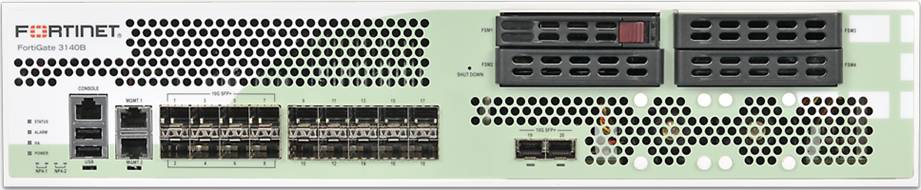

        FortiGate-3140B
  • 2x SP2 Accelerated SFP+ Slots
  • 10x Gigabit NP4 Accelerated SFP Interface Slots
  • 8x 10G NP4 accelerated SPF+ Slots (2x transceivers default)
  • 2x 10/100/1000 Interface Ports
  • 4x Fortinet Storage Module (FSM) Slots (1x 64G HDD default)
  • Dual AC power Supply
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 18 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 58/55/43 Gbps IPS Throughput 8.4 Gbps
    Concurrent Latency 4 μs Antivirus Throughput (Proxy Based / Flow Based) 2.3/5.7 Gbps
    Concurrent Sessions 10 Mil Virtual Domains (Default / Max) 10/250
    New Sessions/Sec 200,000 Max Number of FortiAPs 1,024
    Firewall Policies ( System/VDOM) 100,000 / 50,000 Max Number of FortiTokens 5,000
    IPSec VPN Throughput 22 Gbps Client-to-Gateway IPSec VPN Tunnels 64,000
    SSL-VPN Throughput 500 Mbps Concurrent SSL-VPN Users (Recommended Max) 22,00

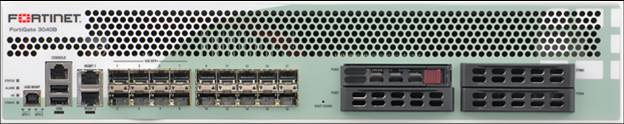

        FortiGate-3040B
  • 10x Gigabit NP4 Accelerated SFP Interface Slots
  • 8x 10G NP4 accelerated SPF+ Slots (2x transceivers default)
  • 2x 10/100/1000 Interface Ports
  • 4x Fortinet Storage Module (FSM) Slots (1x 64G HDD default)
  • Dual AC power Supply
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 18 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 40/40/40 Gbps IPS Throughput 6 Gbps
    Concurrent Latency 4 μs Antivirus Throughput (Proxy Based / Flow Based) 2.3/4.5 Gbps
    Concurrent Sessions 10 Mil Virtual Domains (Default / Max) 10/250
    New Sessions/Sec 200,000 Max Number of FortiAPs 1,024
    Firewall Policies (System/VDOM) 10,000 / 5,000 Max Number of FortiTokens 5,000
    IPSec VPN Throughput 17 Gbps Client-to-Gateway IPSec VPN Tunnels 64,000
    SSL-VPN Throughput 500 Mbps Concurrent SSL-VPN Users (Recommended Max) 22,000

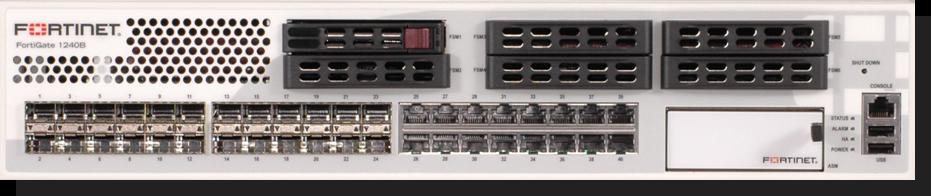

        FortiGate-1240B
  • 24x Gigabit NP4 Accelerated SFP Interface Slots
  • 14x 10/100/1000 NP4 accelerated Interface Ports
  • 2x 10/100/1000 Interface Ports
  • 6x Fortinet Storage Module (FSM) Slots (1x 64G HDD default)
  • 1x Single-Width AMC Slot
  • Dual AC power Supply
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 16 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 40/40/38 - 44/44/42 Gbps IPS Throughput 5-8 Gbps
    Concurrent Latency 7 μs Antivirus Throughput (Proxy Based / Flow Based) 1.2/1.6 Gbps
    Concurrent Sessions 5 Mil Virtual Domains (Default / Max) 10/250
    New Sessions/Sec 120,000 Max Number of FortiAPs 512
    Firewall Policies (System/VDOM) 100,000 / 50,000 Max Number of FortiTokens 5,000
    IPSec VPN Throughput 16-18.5 Gbps Client-to-Gateway IPSec VPN Tunnels 50,000
    SSL-VPN Throughput 370 Mbps Concurrent SSL-VPN Users (Recommended Max) 1,500

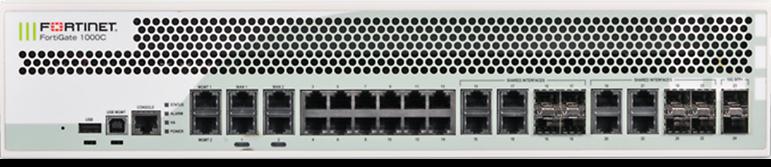

        FortiGate-1000C
  • 12x 10/100/1000 NP4 accelerated Interface Ports
  • 2x 10Gb SPF+ slots
  • 2x 10/100/1000 Interface Ports
  • 8x Share Interfaces (SFP slots or 10/100/1000 interfaces)
  • 2 pair Bypass Interfaces
  • 128 GB SSD Storage
  • Dual AC power Supply
    		•
  • 중요 장점
         - 고속의 방화벽과 IPSec VPN 성능
         - 고속 어플리케이션 컨트롤
         - 가속화된 IPS/AV 성능
         - 22 Port의 유연성과 내부적 보안 분할
         - 보다 간편한 설정을 위한 Forti Explorer USB Port
         - WAN optimization, 리포팅
    • Hardware Performance
    Firewall Throughput (1518/512/64) 20/20/20 Gbps IPS Throughput 6 Gbps
    Concurrent Latency 6 μs Antivirus Throughput (Proxy Based / Flow Based) 1.7/2.1 Gbps
    Concurrent Sessions 7 Mil Virtual Domains (Default / Max) 10/250
    New Sessions/Sec 190,000 Max Number of FortiAPs 512
    Firewall Policies (System/VDOM) 100,000 / 50,000 Max Number of FortiTokens 5,000
    IPSec VPN Throughput 8 Gbps Client-to-Gateway IPSec VPN Tunnels 50,000
    SSL-VPN Throughput 1 Gbps Concurrent SSL-VPN Users (Recommended Max) 3,000






    // //
